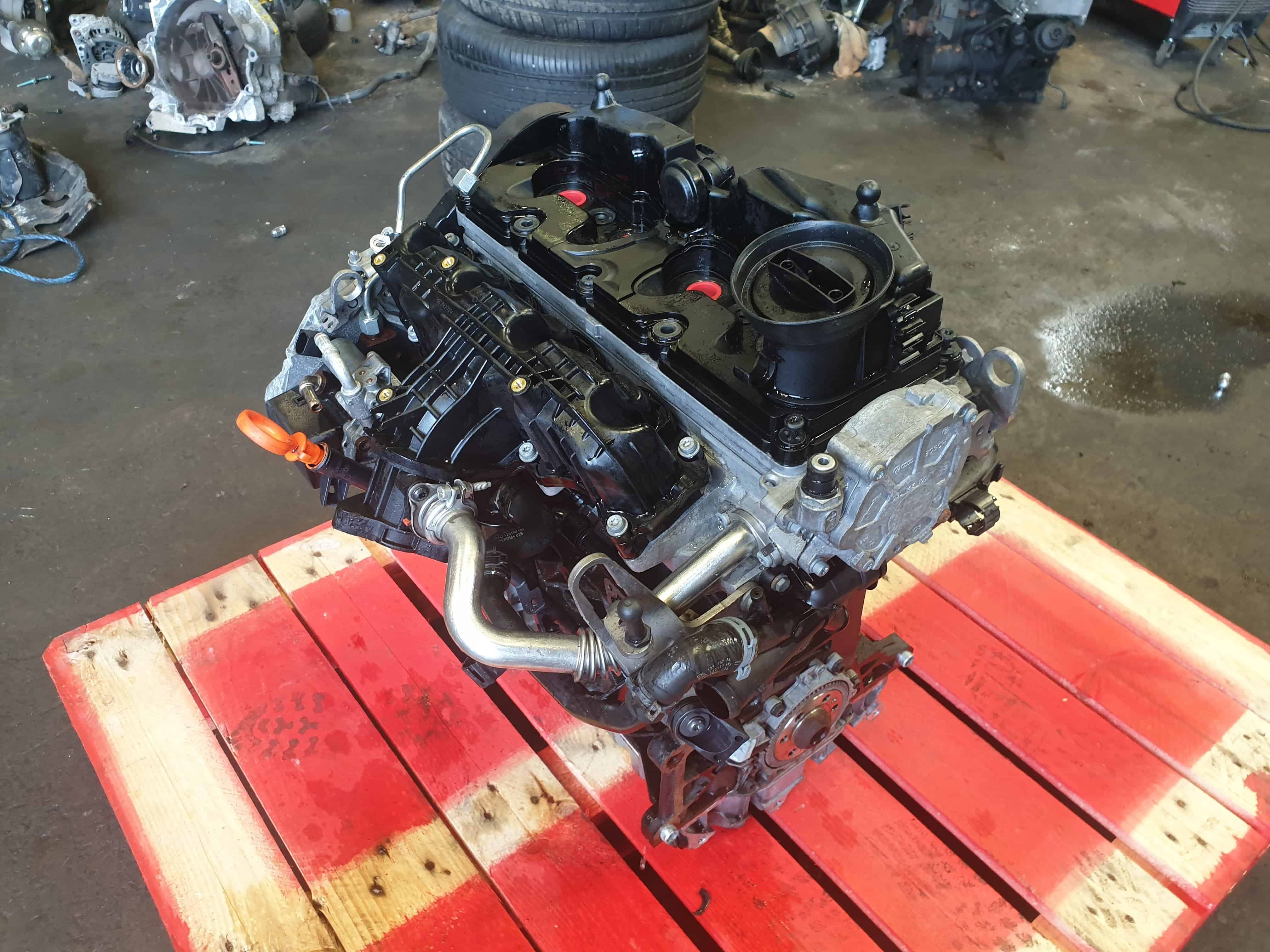

The VW CAY family of 1.6 TDI engines is one of the most common diesel engine ranges fitted across Volkswagen, Audi, SEAT and Skoda vehicles. These engines are found in a huge number of cars and vans and are well known for offering good fuel economy, decent torque and broad usability across smaller and mid-sized vehicles.

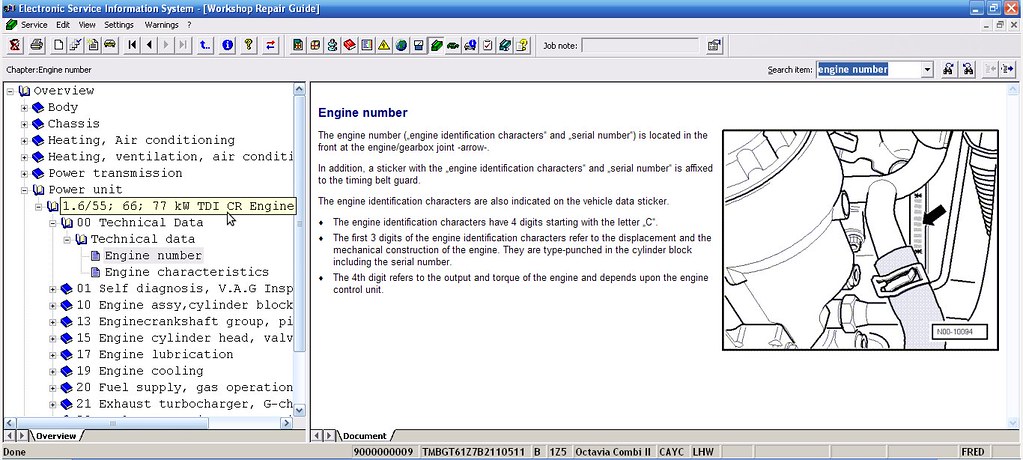

The CAY range includes several variants, most commonly:

• CAYA - 75PS
• CAYB - 90PS
• CAYC - 105PS
• CAYD - 102PS
• CAYE - 75PS

These are all based around a 1.6-litre, four-cylinder, turbocharged common rail diesel engine with 16 valves, an intercooler, EGR and, in most applications, a DPF.

Vehicles the CAY engines are found in

These engines were fitted to a wide range of VAG vehicles including:

• VW Polo
• VW Golf
• VW Golf Plus
• VW Jetta
• VW Touran
• VW Passat
• VW Caddy
• Audi A1
• Audi A3
• SEAT Ibiza
• SEAT Leon
• SEAT Altea
• Skoda Fabia
• Skoda Octavia
• Skoda Rapid
• Skoda Roomster
• Skoda Superb

The CAYC 105PS version is one of the most common and is widely seen in Golfs, A3s, Octavias and similar models.

Engine specifications

The CAY family is built around the following core specification:

• Engine type: 1.6 TDI inline 4-cylinder
• Capacity: 1598cc
• Valvetrain: 16 valve
• Induction: Turbocharged with intercooler
• Fuel system: Common rail direct injection
• Compression ratio: approximately 16.5:1
• Bore x stroke: 79.5mm x 80.5mm

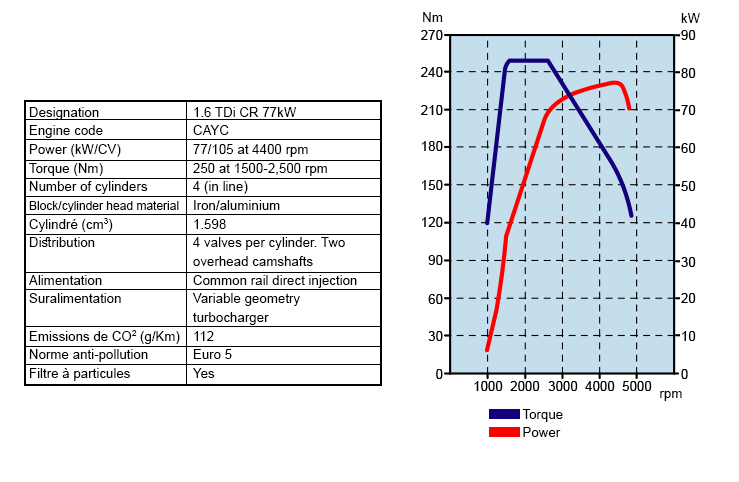

Typical factory outputs are:

• CAYA: 75PS / around 195Nm
• CAYB: 90PS / around 230Nm
• CAYC: 105PS / around 250Nm
• CAYD: 102PS / around 250Nm
• CAYE: 75PS / around 225Nm depending on application

Fuel system specifications

The CAY engines use a common rail fuel system with piezo injectors and a high-pressure pump feeding a shared rail. These engines rely on very accurate fuel delivery and injector correction in order to run smoothly and cleanly.

Typical fuel system details include:

• Low-pressure feed side: around 5 bar
• High-pressure rail pressure: up to around 1600 bar
• Injector type: piezo common rail injectors
• Control strategy: ECU-controlled injection correction and balancing

This is a precision fuel system. It is not tolerant of weak injectors, poor electrical performance, contamination, poor fitting practices or lazy diagnosis.

The injectors used on CAY engines

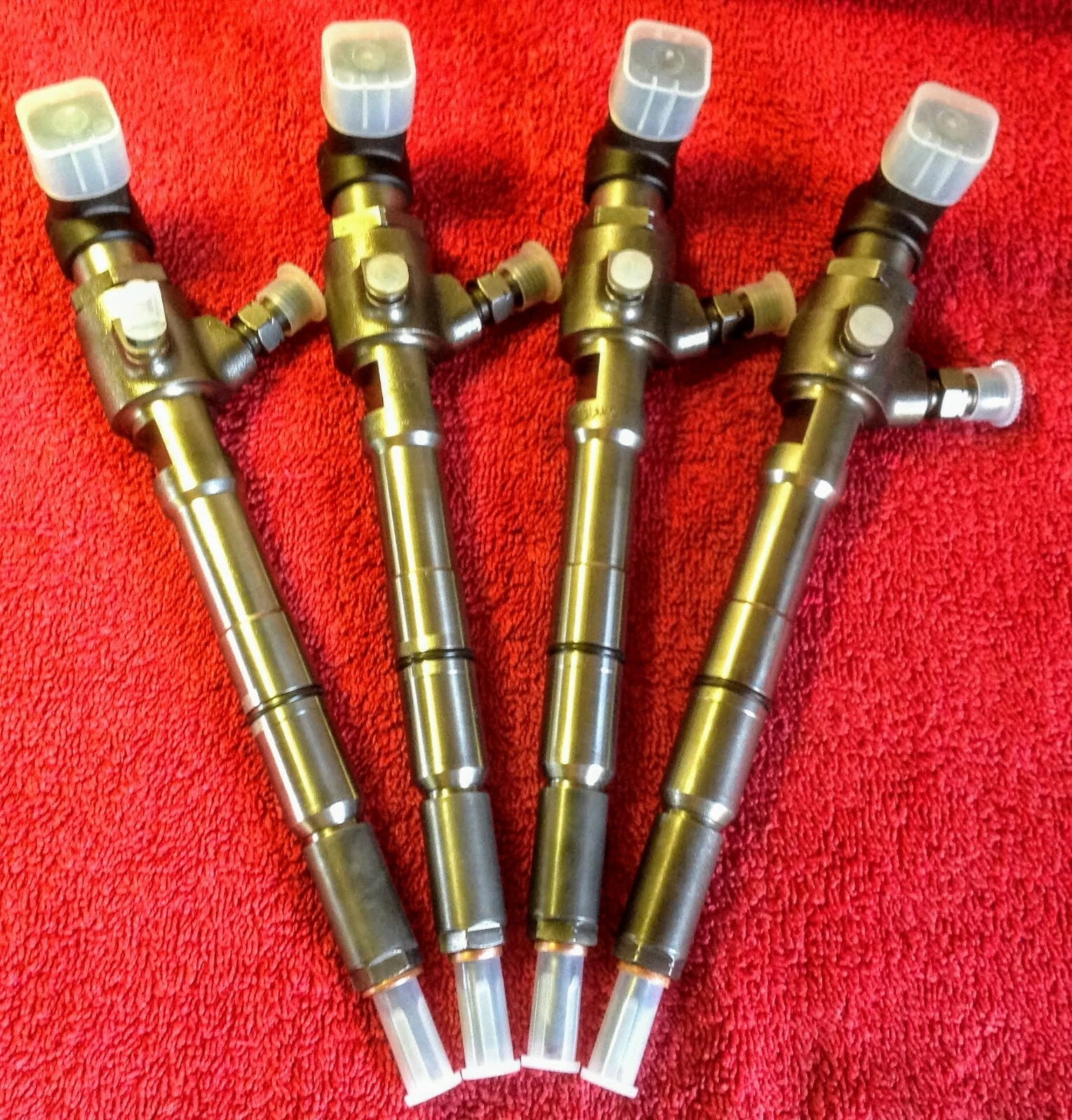

Many CAY engines use Siemens / VDO common rail injectors, commonly seen under part numbers such as:

• 03L130277B
• A2C9626040080

These injectors require proper coding when replaced. Each injector carries a correction code which needs to be entered into the ECU so that the engine management can compensate correctly for injector variation.

When replacing them, it is also important to renew the sealing components and fit them correctly. That includes replacing the copper washer or sealing components as required, and using the correct fitting procedure and bolt torque.

Why CAY injectors go bad

One of the biggest issues with these engines is injector failure.

Unlike some older diesel systems where injector problems might mainly be mechanical, the injectors on the CAY engines often fail electrically. They can break down internally, develop internal faults and in some cases effectively short out.

When that happens, the injector may no longer operate correctly, may become intermittent, or may fail badly enough to stop the engine from running properly at all.

These are not simple old-school injectors. They are precision, high-pressure electronically controlled injectors working in a very demanding environment. Over time, heat, vibration, internal wear and electrical breakdown all take their toll.

What happens when they fail

When a CAY injector starts failing, the problem may begin subtly or it may be quite dramatic.

Common symptoms include:

• rough idle
• hard starting
• poor starting from cold
• excessive cranking
• sudden loss of power
• limp mode
• misfire-like running
• uneven cylinder contribution
• poor fuel economy
• excessive smoke in some cases
• injector circuit fault codes
• non-start in more serious failures

In many cases, the fault is not just a slight drivability issue. A failed injector can seriously upset combustion and cause the whole engine to run badly.

Why injector faults on these engines are such a big problem

On the CAY engines, injector problems do not stay isolated for long.

If one injector is under-fuelling, over-fuelling, or operating intermittently because of an electrical problem, it can quickly cause other issues such as:

• unstable combustion
• excessive soot production
• rough regeneration behaviour
• DPF loading problems
• increased exhaust temperatures
• poor EGR operation
• stress on the turbo and emissions systems
• poor running that gets blamed on other parts

That is why injector faults on these engines need proper diagnosis rather than guesswork.

Why they should be tested properly

Far too often, people start replacing random parts when a CAY engine runs badly.

They may replace sensors, glow plugs, wiring, pumps or even ECUs before properly checking the injectors.

That is the wrong approach.

These injectors should be properly tested so you can determine:

• whether they are electrically sound
• whether they are balanced
• whether one injector is failing harder than the others
• whether the injector itself is the problem or whether there is also a wiring or ECU-side issue
• whether the engine is suitable for tuning or needs repair first

We can test them

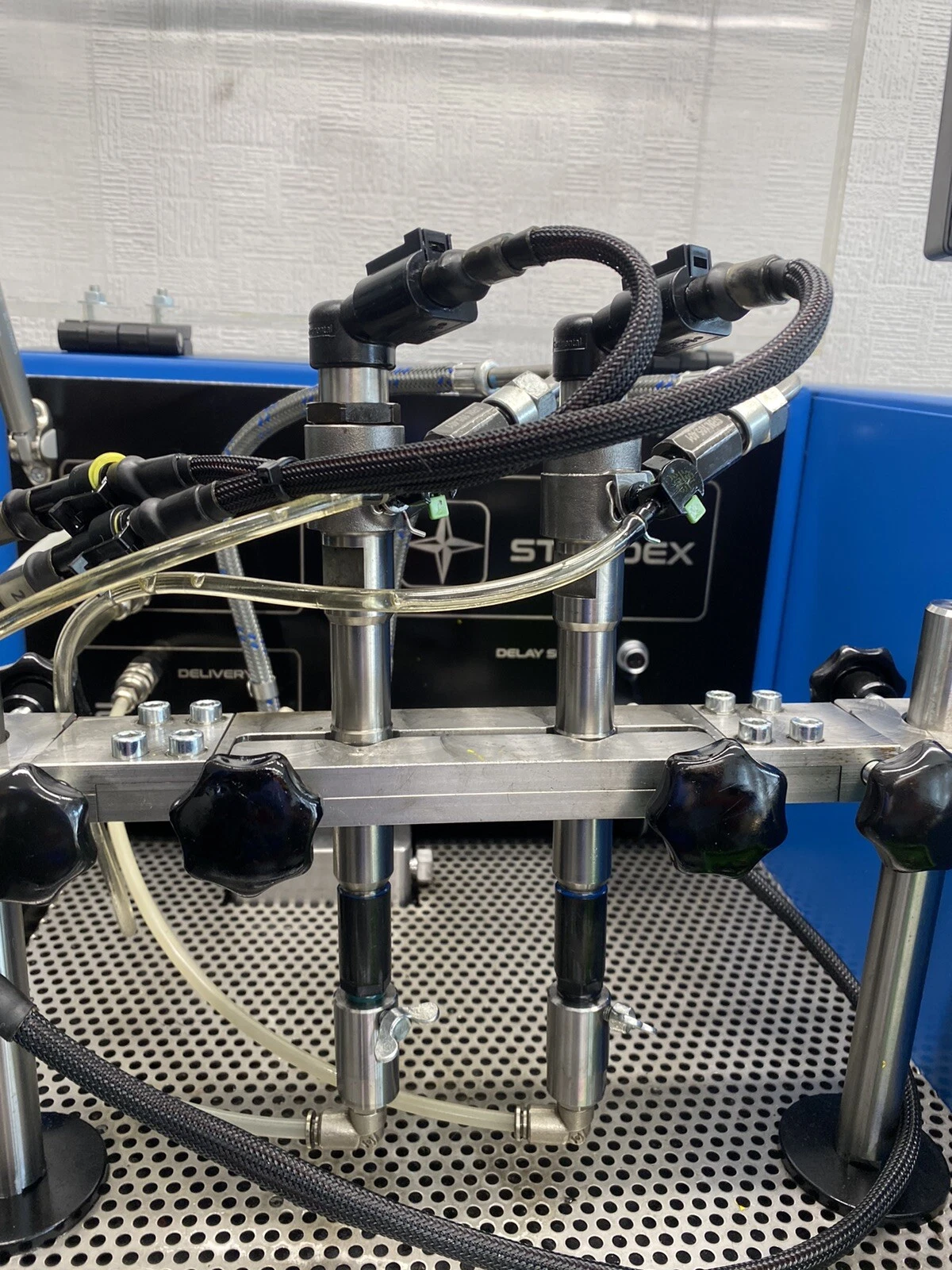

At Llandow Tuning, we can test injectors and properly assess whether the issue is with the injector itself or elsewhere in the system.

That matters because these engines are often misdiagnosed.

A bad injector can be blamed on the ECU. An ECU issue can be blamed on the injector. A wiring fault can confuse the whole picture.

Unless the injectors are tested properly, you can waste a lot of time and money.

Why coding matters after replacement

If a CAY injector is replaced, it is not enough to just fit it and hope for the best.

These injectors need to be coded correctly into the ECU. If that is not done properly, the engine may not run as well as it should, and you can end up with poor correction values, poor smoothness and further diagnosis confusion.

Correct fitting and correct coding are both essential.

Why these engines need proper specialist knowledge

The CAY engines are not bad engines, but they are engines that need proper handling.

They use a modern common rail setup, piezo injectors, EGR, DPF and a fairly tightly controlled emissions strategy. That means there is plenty going on, and faults often overlap.

For example:

• poor injectors can create DPF issues
• DPF issues can mask injector problems
• EGR issues can affect combustion quality
• ECU or wiring issues can look like injector failure
• injector failure can be misread as a fuel-pressure problem

This is exactly why these engines need to be diagnosed as a whole system.

Upgrades and solutions we can offer for CAY engines

At Llandow Tuning, we can offer a range of services for CAY engines depending on what the vehicle needs.

Injector Testing

Injector testing is one of the most important services for these engines. If a vehicle has injector-related faults, poor running, hard starting or suspected electrical injector failure, testing the injectors properly is one of the first sensible steps.

ECU Repairs

Because injector issues can overlap with ECU and driver-stage faults, ECU testing and repair can also be important. If the injector control side is in question, this needs to be checked properly rather than guessed at.

DPF Solutions

The CAY engines are commonly fitted with DPF systems, and injector issues often contribute to DPF problems. Poor combustion, excessive soot and bad running can all overload the DPF system. We can assess DPF-related problems and advise on the correct route depending on the vehicle and its use.

EGR Solutions

The EGR system on these engines can also become problematic, especially as the vehicles age. Poor injector performance, carbon build-up and general diesel running issues can all contribute to EGR faults and poor drivability.

Tuning

These engines can be tuned well, but only when they are healthy. Tuning a CAY engine with failing injectors or unresolved underlying faults is asking for trouble. Before tuning, injector condition and general engine health need to be understood properly.

Why tuning a bad CAY engine is a mistake

A lot of people see tuning as the first step.

In reality, on these engines it often needs to be the last step.

If the injectors are weak, electrically unstable or already causing poor combustion, tuning will not fix that. In fact, it can make the problem worse by increasing fuel demand and reducing the engine's safety margin.

A CAY engine should be healthy first. Then it can be tuned properly.

The bottom line

The VW CAY 1.6 TDI family is fitted to a huge number of VAG vehicles and is built around a precise common rail injection system with piezo injectors and high fuel pressure.

One of the biggest weaknesses on these engines is injector failure, especially electrical injector breakdown. These injectors can short internally, fail intermittently and create a wide range of running faults that are often misdiagnosed.

That is why proper injector testing matters. That is why proper coding matters. That is why proper diagnosis matters.

And that is why these engines should be assessed properly before anyone starts replacing random parts or trying to tune around faults.
